Measuring Recessed Windows
This guide is for standard recessed windows. It covers the 'in-recess' and 'front-of-recess' fitting method for our classic shutters.
What you’ll need
- Steel tape measure
- Pen or pencil
- Paper
Preparation
Decide where on the window your DIY shutters will be fitted. This is where you will take your measurements. Ensure you have enough clearance from any protruding window furniture like handles or vents. We recommend leaving at least 10mm gap between these and the back of the shutter frame.
In-Recess
Choose this fitting option if you plan to fit your shutter in the middle or towards the back of the window recess.
Front of Recess
Choose this fitting option if you plan to fit your shutter right at the front edge of the window recess. The front of recess frame includes a lip that will wrap around onto the surrounding walls, so you don't need to worry about concealing any gaps.
Need some help? No problem. Send us a message and we'll help you get started.
In recess frame
Front of recess frame
Step 1 - Measure the width
If your shutter will be fitted into the window recess, measure the width in three places to find the smallest dimension.
Important: Measure the recess where you plan to fit the frame. Please also make sure you measure the front opening to check the assembled frame can fit through.

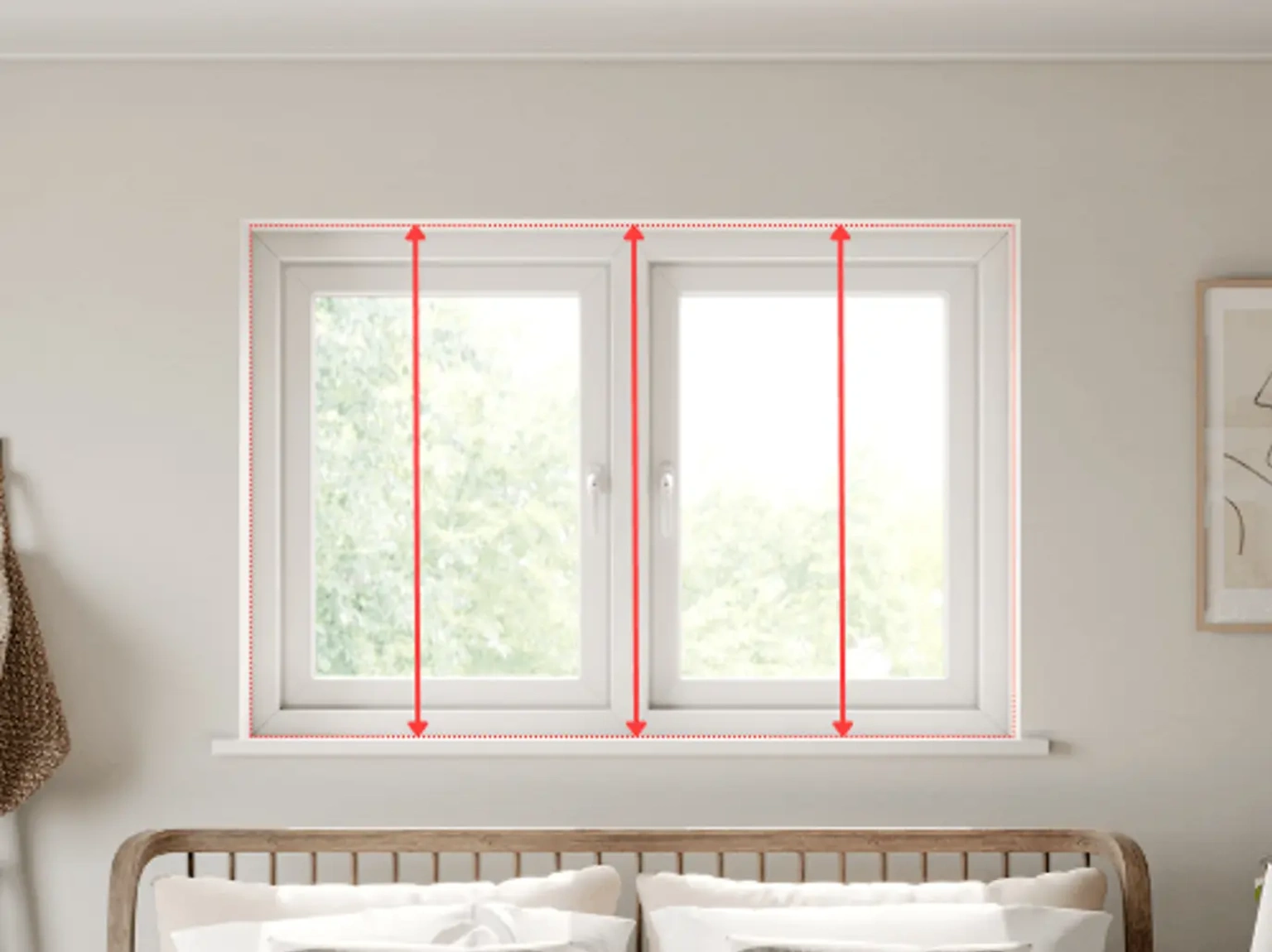

Step 2 - Measure the height
Measure the height in three places to find the smallest dimension.
For café style shutters, measure up to where you'd like the top of the shutter to finish.
If you are measuring for side-by-side windows, please make the height provided the same for each. This will ensure a matching number of slats.
Step 3 - Make deductions
We recommend deducting 4mm for tolerance from your smallest width and height sizes.
Optional Step - Midrail
If you are ordering a full height shutter over 1500mm in height, you will need to provide a midrail measurement.
A midrail is a fixed horizontal rail that provides structural support to your shutter panels.
Measure up from the sill to where you'd like the midrail to be centered.
Optional Step - T Bar
If you are ordering a tier on tier shutter, you will need to provide a T-Bar measurement.
A T-Bar is a horizontal frame piece that divides the top and bottom panels of your tier on tier shutter.
Measure up from the sill to where you'd like the midrail to be centered.
